M8 x 80 Countersunk T45 Torx Bimetal Concrete Anchor, Stainless Steel A4, TXA08080
| Qty | Price per unit | Price per 100 units |
|---|---|---|
| 1 - 24 | £2.4091Inc. VAT | £240.91Inc. VAT |
| 25 - 74 | £2.0076Inc. VAT | £200.76Inc. VAT |
| 75 - 399 | £1.8068Inc. VAT | £180.68Inc. VAT |
| 400+ | £1.6061Inc. VAT | £160.61Inc. VAT |
SKU Number: 5159140
SKU Number: 5159146
Bimetal concrete screw anchor. Stainless steel A4. ETA Assessed Opt.1. Countersunk head with Bimetal point.

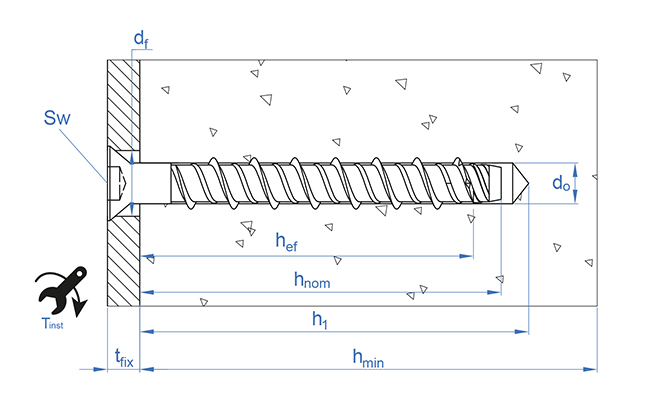

L - Length: 80mm
Mº - M: Ø8
df - Ø Element to fix: 12mm
hmin - Min. substrate thickness: 80mm
hef - Effective depth: 65mm
Tins - Torque (Nm): 20mm
Min. distance from axis "B": 152
Tension load non-cracked concrete: 714
Tension load cracked concrete: 500
dk - Head Ø: 18mm
d0 - Ø Drill: 8
Drill hole depth min.: 75
Min. anchor depth: 65
tfix - Max. fixture thickness: 15
Min. distance to edge “A”: 76
SW - Installation key: TX45
Shear load non-cracked concrete: 853
Shear load cracked concrete: 834
